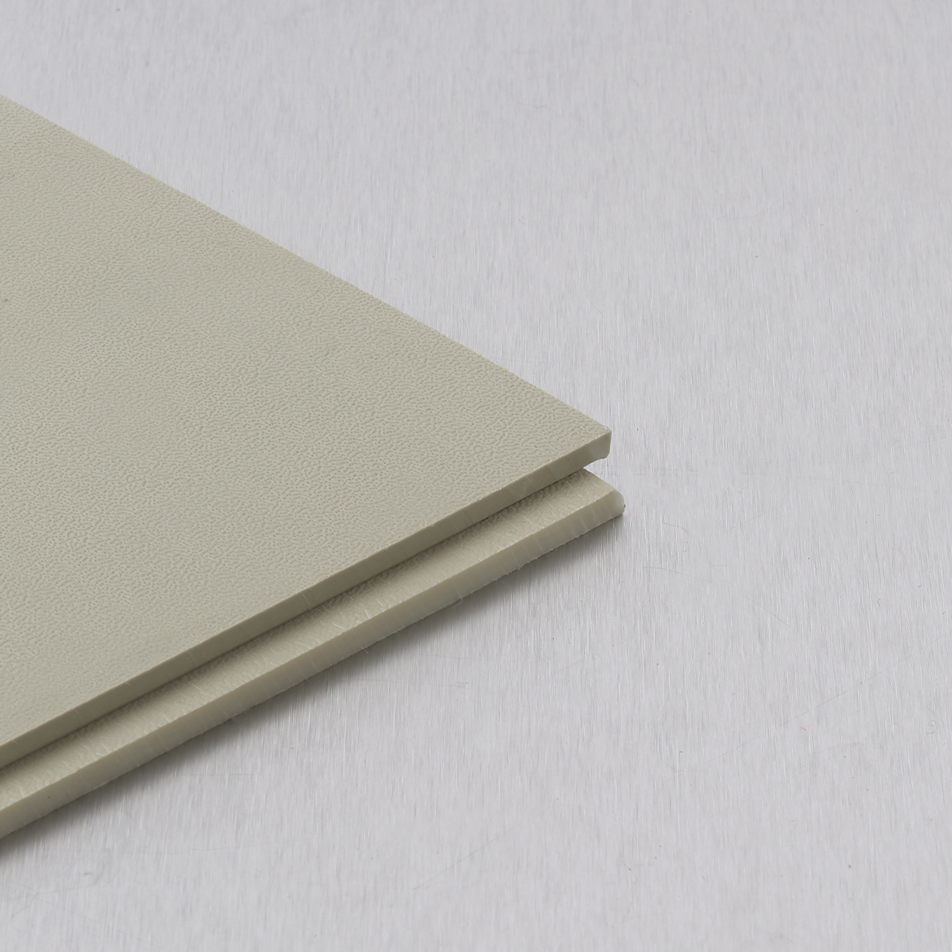

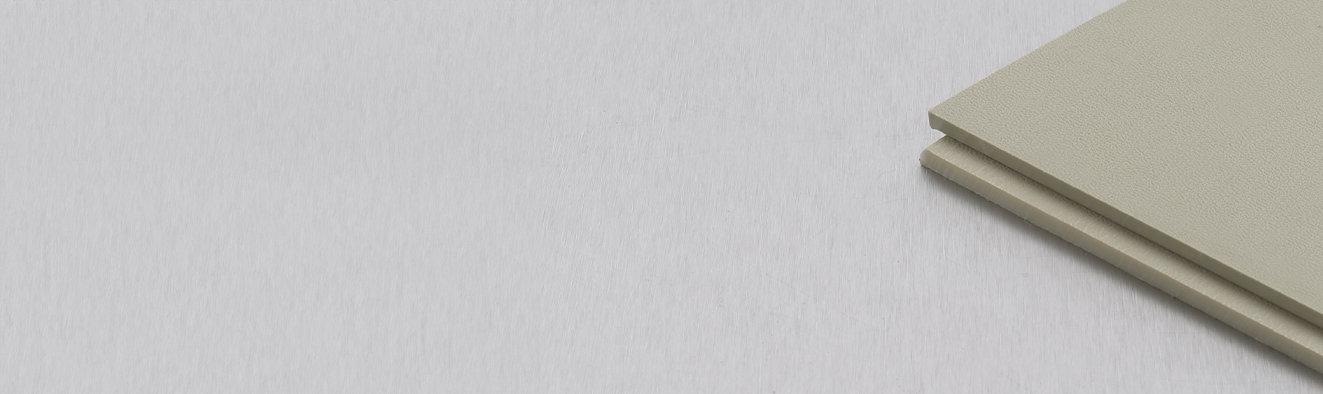

PPC - PB
Product full identity:
Polypropylene Copolymer - Polyester Backed
PPC-PB is a polyester backed PP sheet. By applying fibreglass to the fabric backing it is possible to acheive strength and rigidity that is comparable with metal.
Properties
- Allows fibreglass reinforcement to be applied
- Wide temperature range (+80 to -20°C)
- Excellent chemical resistance
- Very low moisture absorption <0.1%
- Food contact approved.
Applications

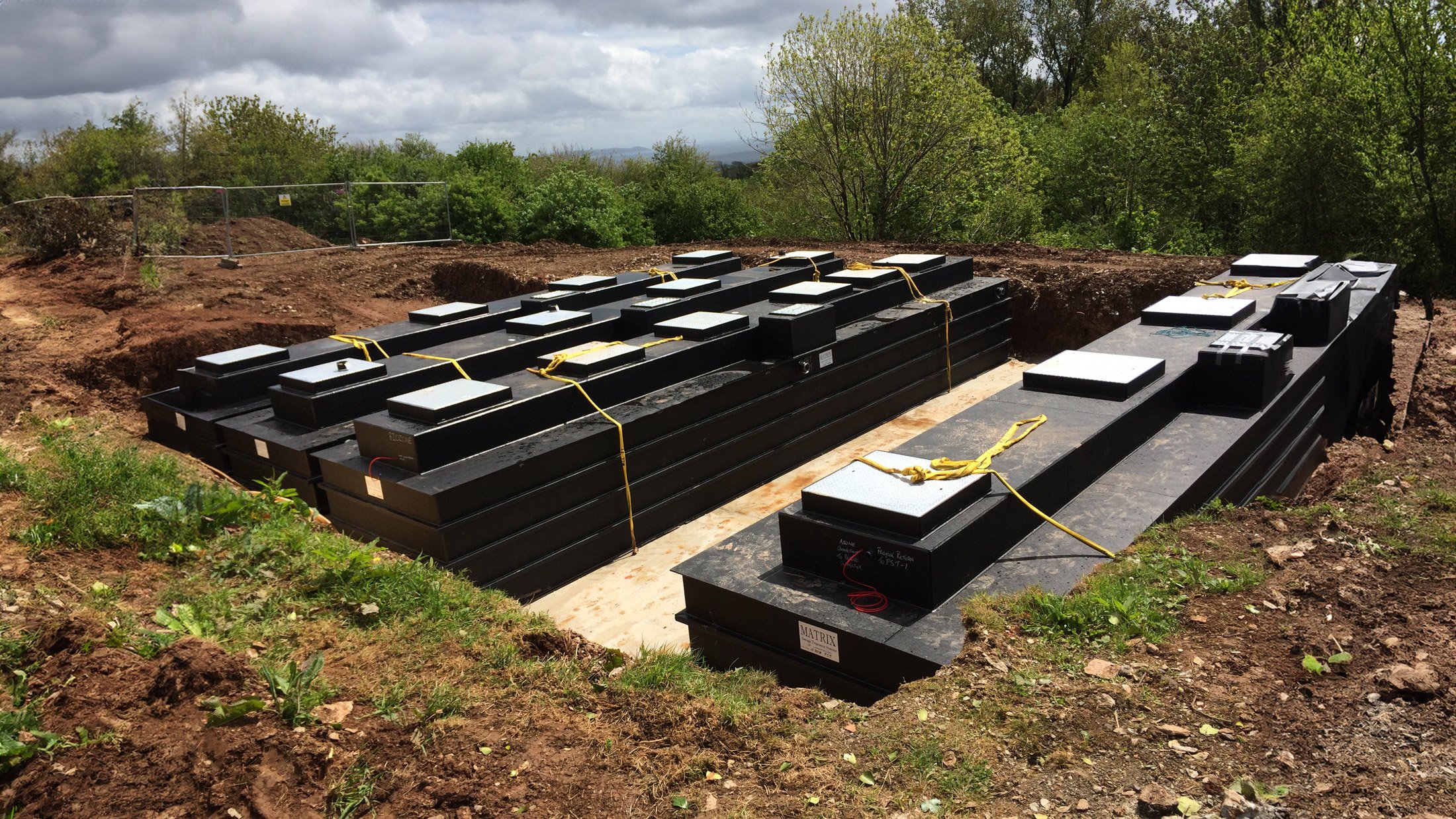

- Large tanks that require fibreglass reinforcement.
Forms
- Sheet
Technical Properties:
All information is for guide purposes only. The data has been taken from standard test results provided by our manufacturers.
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Specific gravity | g/cm³ | ISO 1183 | 0.91 |
| Maximum service temp. Upper temp limit - Long term | °C | . | 70 |
| Lower temp limit | °C | . | -30 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Tensile strength | MPa | ISO 527-2 | 28 |
| Elongation at yield | % | ISO 527-2 | 12 |
| Notch impact strength | kJ/m² | ISO180/A | 7 (-30ºC) / 58 (23ºC) |
| Flexural modulus of elasticity | MPa | ISO 178 | 1350 |
| Tensile modulus of elasticity | MPa | ISO 527-2 | 1.35 |
| Shore-D | ISO 868 | 67 | |
| Shore-D | ISO 868 | 67 | |
| Shore-D | ISO 868 | 67 |
| Property | Unit | Test Method | Value |
|---|
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Vicat-softening point VST/B/50 | °C | ISO 306/A | 158 |
| Heat deflection temperature HDT/B | °C | ISO751B | 90 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Food compliance - FDA | FDA | no | |
| Food compliance - EU | EU 10/2011 | no | |
| Food compliance - FDA | FDA | no | |
| Food compliance - EU | EU 10/2011 | no | |
| Food compliance - FDA | FDA | no | |
| Food compliance - EU | EU 10/2011 | no |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Fire performance | UL 94 | HB | |
| Fire performance | UL 94 | HB | |
| Fire performance | UL 94 | HB |
| Property | Unit | Test Method | Value |
|---|
