Nylon 66
Product full identity:
Nylon 66 / Polyamide 66 (PA 66)
Nylon 66 has a higher mechanical strength, stiffness, heat and wear resistance than standard 6. It also has a better creep resistance, however, its impact strength and mechanical damping ability are lower.
Properties
- High strength and stiffness
- High wear and creep resistance
- Wide temperature range (+95 to -30°C)
- Dimension stability and electrical properties
- Food contact approved
- Easily machined.
Applications
- Gears
- Bushes
- Washers
- Applications that require wear resistance.

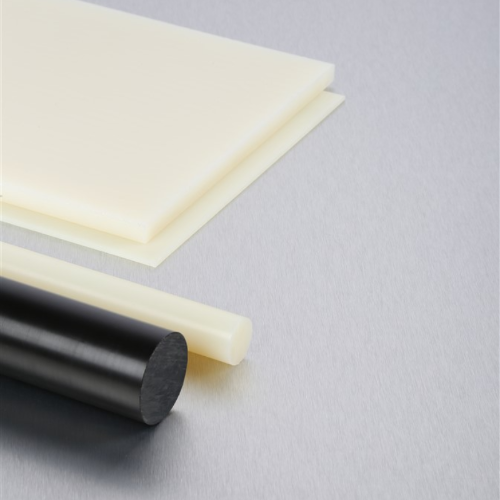

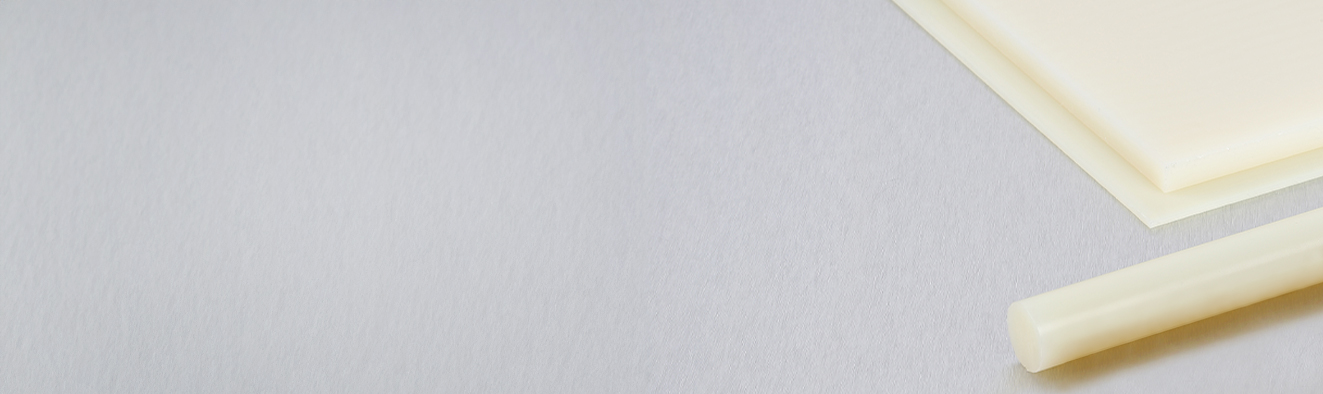

Forms
- Sheet
- Rod
Technical Properties:
All information is for guide purposes only. The data has been taken from standard test results provided by our manufacturers.
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Specific gravity | g/cm³ | ISO 1183-1 | 1.14 |
| Water absorption till saturation 23°C | % | 8 | |
| Maximum service temp. Upper temp limit - short term | °C | 180 | |
| Maximum service temp. Upper temp limit - Long term | °C | 95 | |
| Lower temp limit | °C | -30 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Tensile strength | MPa | ISO 527-1/-2 | 90 |
| Unnotched Impact strength | kJ/m² | ISO 179-1/1eU | no break |
| Notch impact strength | kJ/m² | ISO 179-1/1eA | 6 |
| Ball indentation / Rockwell hardness | MPa | ISO 2039-1/2039-2 | 160 / M88 |
| Flexural modulus of elasticity | MPa | ISO 178 | 2800 |
| Tensile modulus of elasticity | MPa | ISO 527-1/-2 | 3100 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Volume resistivity | Ω x m | IEC 60093 | > 1012 |
| Surface resistivity | Ω | IEC 60093 | > 1013 |
| Dielectric strength | kV/mm | IEC 60243-1 | 27 |
| Dielectric constant at 1MHz | IEC 60250 | 3.30 | |
| Dielectric loss factor at 1 MHz | IEC 60250 | 0.02 | |
| Comparative tracking index (CTI) | IEC 60112 | 600 | |
| Dielectric constant at 1MHz | IEC 60250 | 3.30 | |
| Dielectric loss factor at 1 MHz | IEC 60250 | 0.02 | |
| Comparative tracking index (CTI) | IEC 60112 | 600 | |
| Dielectric constant at 1MHz | IEC 60250 | 3.30 | |
| Dielectric loss factor at 1 MHz | IEC 60250 | 0.02 | |
| Comparative tracking index (CTI) | IEC 60112 | 600 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Heat deflection temperature HDT/B | °C | ISO 75-1/-2 | 85 |
| Coefficient of linear thermal expansion 23°C - 100°C | m/(m.K) | ISO 11359 | 0.8 |
| Thermal conductivity at 23°C | W/mK | DIN 52612 | 0.28 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Food compliance - FDA | FDA | yes | |
| Food compliance - EU | EU 10/2011 | yes | |
| Food compliance - FDA | FDA | yes | |
| Food compliance - EU | EU 10/2011 | yes | |
| Food compliance - FDA | FDA | yes | |
| Food compliance - EU | EU 10/2011 | yes |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Fire performance | UL 94 | HB | |
| Fire performance | UL 94 | HB | |
| Fire performance | UL 94 | HB |
