Nylon 66 GS
Product full identity:
Nylon 66 GS / Nylatron GS / Nylon MoS2
Nylon 66 GS has a higher mechanical strength, stiffness, heat and wear resistance than standard Nylon 66. It also has a better creep resistance, however, its impact strength and mechanical damping ability are lower.
Properties
- High strength and stiffness
- High wear and creep resistance
- Good temperature range (+80 to -20°C)
- Good creep resistance
- Easily machined
Applications
- Gears
- Bushes
- Washers
- Applications that require wear resistance.
Forms

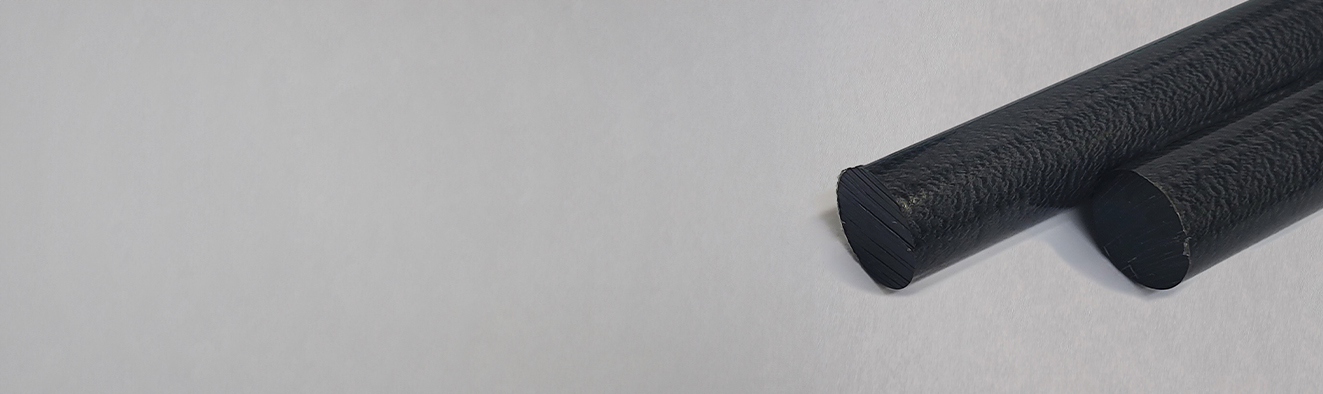

- Rod
Technical Properties:
All information is for guide purposes only. The data has been taken from standard test results provided by our manufacturers.
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Specific gravity | g/cm³ | ISO 1183-1 | 1.15 |
| Water absorption till saturation 23°C | % | ISO 62 | 0.68 |
| Maximum service temp. Upper temp limit - Long term | °C | 80 | |
| Lower temp limit | °C | -20 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Tensile strength | MPa | ISO 527-1/-2 | 95 |
| Unnotched Impact strength | kJ/m² | ISO 179-1/1eU | no break |
| Notch impact strength | kJ/m² | ISO 179-1/1eA | 4 |
| Ball indentation / Rockwell hardness | MPa | ISO 2039-2 | 88 |
| Flexural modulus of elasticity | MPa | ISO 178 | 3240 |
| Tensile modulus of elasticity | MPa | ISO 527-1/-2 | 3600 |
| Tensile strength at break | % | ISO 527-1/-2 | 20 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Volume resistivity | Ω x m | IEC 60093 | > 1014 |
| Surface resistivity | Ω | ANSI/ESD STM 11.11 | > 1013 |
| Dielectric strength | kV/mm | IEC 60243-1 | 26 |
| Dielectric constant at 1MHz | IEC 60250 | 3.30 | |
| Dielectric loss factor at 1 MHz | IEC 60250 | 0.02 | |
| Dielectric constant at 1MHz | IEC 60250 | 3.30 | |
| Dielectric loss factor at 1 MHz | IEC 60250 | 0.02 | |
| Dielectric constant at 1MHz | IEC 60250 | 3.30 | |
| Dielectric loss factor at 1 MHz | IEC 60250 | 0.02 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Heat deflection temperature HDT/B | °C | ISO 75-1/-2 | 85 |
| Coefficient of linear thermal expansion 23°C - 100°C | m/(m.K) | 90 x 10-6 | |
| Thermal conductivity at 23°C | W/mK | 0.29 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Food compliance - FDA | FDA | No | |
| Food compliance - EU | EU 10/2011 | No | |
| Food compliance - FDA | FDA | No | |
| Food compliance - EU | EU 10/2011 | No | |
| Food compliance - FDA | FDA | No | |
| Food compliance - EU | EU 10/2011 | No |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Fire performance | UL 94 | HB | |
| Fire performance | UL 94 | HB | |
| Fire performance | UL 94 | HB |
