PE - HD (100)
Product full identity:
Polyethylene - High Density
PE100 is cerified grade of HDPE that is proven to be highly resistant to stress cracking under increased pressure ratings.
Properties
- High resistance to stress cracking
- High impact strength
- Wide temperature range (+80 to -50°C)
- Good chemical resistance
- Lightweight and weldable
- Very low moisture absorption <0.1%.
Applications
- Chemical tanks
- High pressure applications
- Boat building
Forms

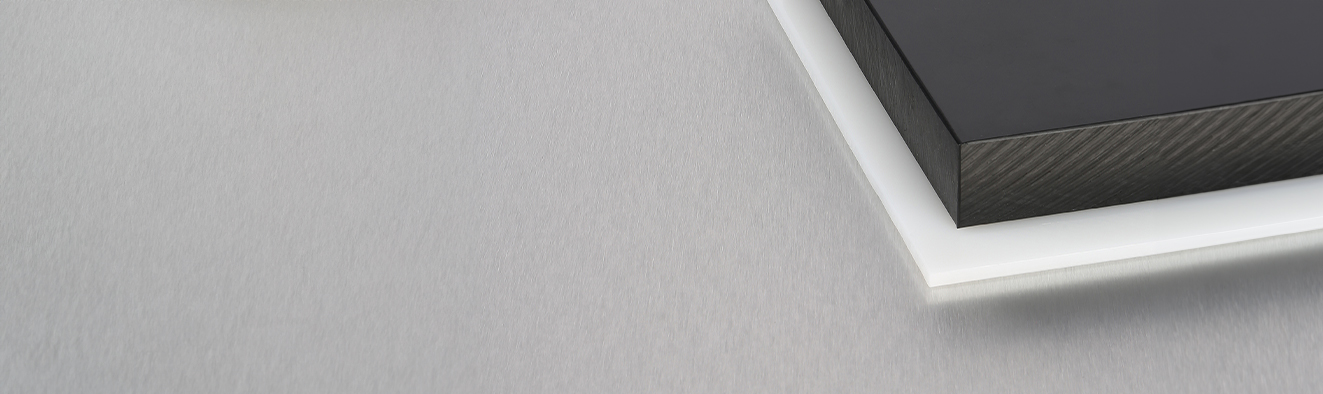

- Sheet

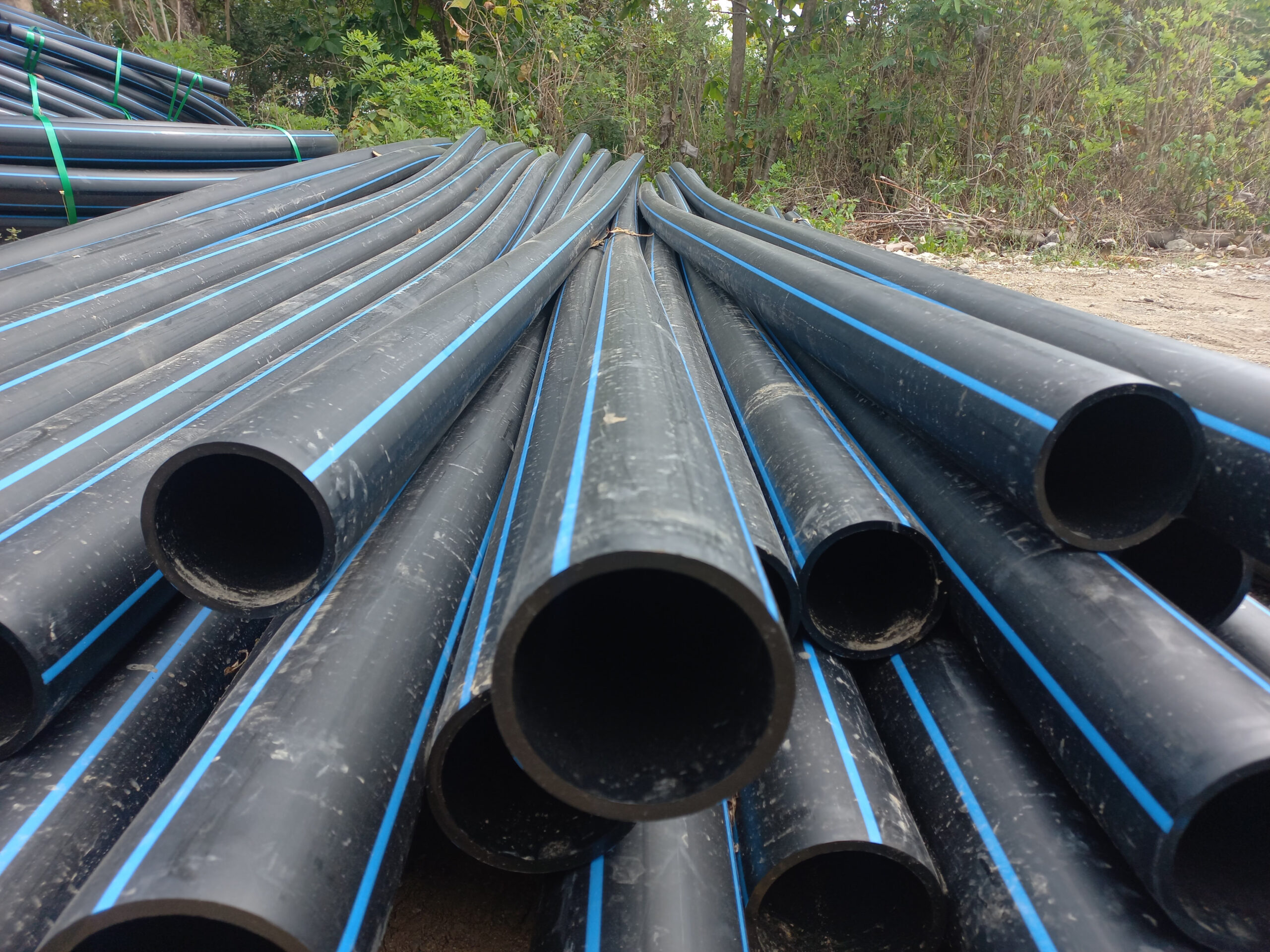

- Pressure pipe
- Weld rod
Technical Properties:
All information is for guide purposes only. The data has been taken from standard test results provided by our manufacturers.
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Specific gravity | g/cm³ | DIN EN ISO 1183 | 0.96 |
| Maximum service temp. Upper temp limit - short term | °C | 80 | |
| Lower temp limit | °C | -50 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Tensile strength | MPa | DIN EN ISO 527 | 23 |
| Elongation at yield | % | DIN EN ISO 527 | 9 |
| Unnotched Impact strength | kJ/m² | DIN EN ISO 179 | no break |
| Notch impact strength | kJ/m² | DIN EN ISO 179 | 21 |
| Ball indentation / Rockwell hardness | MPa | DIN EN ISO 2039-1 | 40 |
| Tensile modulus of elasticity | MPa | DIN EN ISO 527 | 1100 |
| Shore-D | DIN EN ISO 868 | 64 | |
| Shore-D | DIN EN ISO 868 | 64 | |
| Shore-D | DIN EN ISO 868 | 64 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Surface resistivity | Ω | DIN IEC 60093 | ≥1013 |
| Dielectric strength | kV/mm | DIN IEC 60243-1 | 47 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Coefficient of linear thermal expansion 23°C - 100°C | m/(m.K) | ISO 11359-2 | 1.8 x 10-4 |
| Thermal conductivity at 23°C | W/mK | DIN EN 12667 | 0.38 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Food compliance - FDA | FDA | yes (natural only) | |
| Food compliance - EU | EU | yes | |
| Food compliance - FDA | FDA | yes (natural only) | |
| Food compliance - EU | EU | yes | |
| Food compliance - FDA | FDA | yes (natural only) | |
| Food compliance - EU | EU | yes |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Fire performance | DIN 4102 | B2 | |
| Fire performance | DIN 4102 | B2 | |
| Fire performance | DIN 4102 | B2 |
| Property | Unit | Test Method | Value |
|---|
