PP - FR

PP - FR


Product full identity: Polypropylene - Fire Retardant

PP-FR has most of the attributes of standard PP, with the added advantage of being a fire retardant grade.

Properties


  • Improved fire resistance
  • Wide temperature range (+80 to -0°C)
  • Excellent chemical resistance
  • Lightweight and weldable
  • Very low moisture absorption <0.1%.

Applications


  • Heating ventilation
  • Air conditioning systems.

Forms

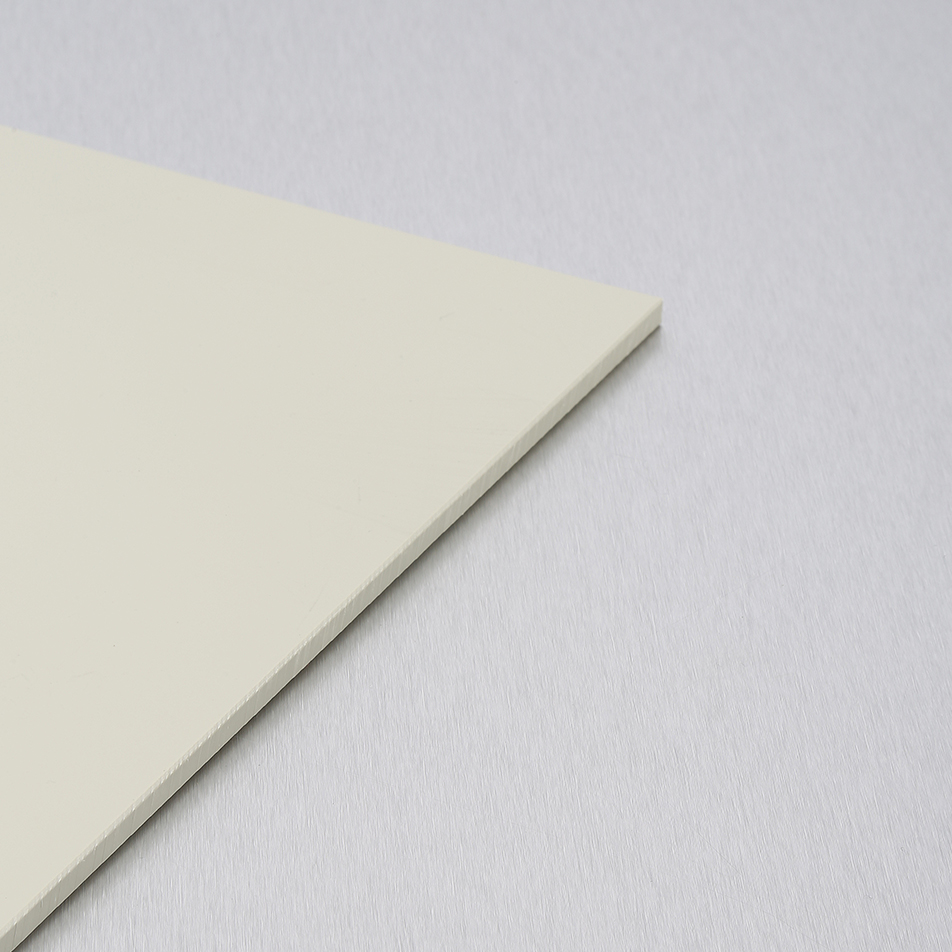

  • Sheet
  • Weld rod
Download Product Information Click here for Product Availability

Technical Properties:

All information is for guide purposes only. The data has been taken from standard test results provided by our manufacturers.

Property Unit Test Method Value
Specific gravity g/cm³ DIN EN ISO 1183 1.04
Maximum service temp. Upper temp limit - short term °C 75
Lower temp limit °C -30
Property Unit Test Method Value
Tensile strength MPa DIN EN ISO 527 25
Notch impact strength kJ/m² DIN EN ISO 180 (23°C-35 / -30°C-4)
Flexural modulus of elasticity MPa DIN EN ISO 178 1400
Shore-D DIN EN ISO 868 67
Shore-D DIN EN ISO 868 67
Property Unit Test Method Value
Property Unit Test Method Value
Vicat-softening point VST/B/50 °C ISO 306/A 188
Heat deflection temperature HDT/B °C ISO 75/B 97
Property Unit Test Method Value
Food compliance - FDA FDA no
Food compliance - EU EU 10/2011 no
Food compliance - FDA FDA no
Food compliance - EU EU 10/2011 no
Property Unit Test Method Value
Fire performance 1.5mm=UL94

3mm=UL94

2mm+=FMV55302

3mm+=DIN4102
HB

V2

Passes

B1
Fire performance 1.5mm=UL94

3mm=UL94

2mm+=FMV55302

3mm+=DIN4102
HB

V2

Passes

B1
Property Unit Test Method Value
Download Technical Information
